Oana Savu1, Marinela Şerban1, R. Iacob2, H. Moldovan1, V. Serban-Barbu2, G. Becheanu2, Otilia Banu1, Carmen Ginghină1

Articol primit la data de 23 noiembrie 2011. Articol acceptat la data de 28 noiembrie 2011.

1 Institutul de Urgenţă pentru Boli Cardiovasculare “Prof. Dr. C.C. Iliescu” Bucureşti
2 Institutul Clinic Fundeni, Centrul de Gastroenterologie şi Hepatologie Bucureşti

Dr. Oana Savu, Institutul de Urgenţă pentru Boli Cardiovasculare “Prof. Dr. C. C. Iliescu”, Şos. Fundeni 258, Sector 2, 022328, Bucureşti

Abstract: Endocarditis due to Streptococcus bovis is frequently associated with colorectal carcinoma. In recent bacteriological nomenclature Streptococcus bovis type I has been renamed Streptococcus gallolyticus. In patients with Streptococcus gallolyticus endocarditis evaluation of the lower digestive tract through colonoscopy is warranted. We report the case of a 51-year old patient with Streptococcus gallolyticus endocarditis with aortic and mitral valve involvement and large mitral vegetation. Colonoscopy performed in an otherwise asymptomatic patient revealed multiple polypoid colonic lesions – three pedunculated and two sesile, which were endoscopically resected. Histopathological examination revealed in one of pedunculated polypoid lesions high grade dysplasia occupying 40% of the polyp surface with multiple epithelial misplacement areas of low grade dysplasia. The polip presented safe margins of resection. The case underlines the importance of the new bacteriologic nomenclature and stresses the significance of the association between Streptococcus gallolyticus endocarditis and colorectal premalignant and malignant lesions. It also suggests epithelial misplacement as a possible cause of bacteriemia.
Keywords: Streptococcus gallolyticus, infective endocarditis, colonic cancer

Rezumat: Endocardita determinată de Streptococcus bovis este frecvent asociată cu carcinomul colorectal. În nomenclatura microbiologică recentă biotipul I al Streptococcus bovis a fost redenumit Streptococcus gallolyticus. În cazul pacienţilor cu endocardită cu Streptococcus gallolyticus este necesară evaluarea tubului digestiv inferior prin colonoscopie. Prezentăm cazul unui pacient de 51 de ani, cu endocardită infecţioasă cu Streptococcus gallolyticus pe valva mitrală şi aortică şi vegetaţie de mari dimensiuni la nivelul valvei mitrale. Colonoscopia efectuată la un pacient altfel asimptomatic din punct de vedere digestiv a evidenţiat mai multe leziuni polipoide ce au fost excizate endoscopic. Examenul histopatologic a evidenţiat la nivelul unei formaţiuni polipoide pediculate displazie de grad înalt şi arii de „epithelial misplacement” cu displazie de grad jos. Polipul a fost excizat cu o margine de rezecţie indemnă. Cazul prezentat subliniază importanţa conştientizării asocierii între endocardita infecţioasă cu Streptococcus gallolyticus şi leziunile maligne sau premaligne colorectale şi a noii nomenclaturi microbiologice. De asemenea, sugerează asocierea dintre leziunile de tip „epithelial misplacement” şi prezenţa bacteriemiei.
Cuvinte cheie: Streptococcus gallolyticus, endocardită infecţioasă, cancer colonic

Case report

We report the case of a 51-year old patient, admitted for dyspnea on moderate exertion after the completion of a 6-week antibiotic cure for Streptococcus gallolyticus infective endocarditis in another clinic. Prior to the diagnosis of endocarditis the patient complained of low grade fever and malaise for approximately two months. He had no previous history of valvular heart disease and no medical maneuver with bacteremic risk could be identified.
Physical examination revealed grade III apical systolic murmur and diastolic murmur in the aortic area, with no signs of pulmonary or systemic congestion and no fever. ECG (Figure 1) showed sinus rhythm, normal QRS complex and no ST-T abnormalities. Blood tests in our clinic were unremarkable for inflammatory parameters (leukocytes 8520/mm3, ESR 19 mm/h, fibrinogen 400 mg/dl). At this moment blood cultures were negative after the antibiotic treatment (ceftriaxone and gentamicine for 6 weeks).

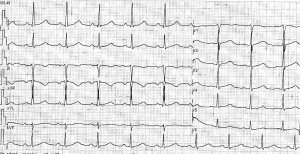

Figure 1. ECG: sinus rhythm, normal QRS complex and no ST-T abnormalities.

Echocardiography, both transthoracic and transesophageal, revealed severe mitral regurgitation, moderate-severe aortic regurgitation and the presence of a long, mobile vegetation on the posterior mitral valve measuring approximately 2.2 cm (Figure 2, 3). The left ventricle was slightly enlarged, with preserved left ventricular ejection fraction. Moderate pulmonary hypertension was noted.

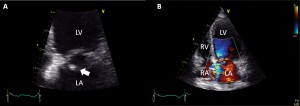

Figure 2. Transthoracic echocardiography. A. Apical 4 chamber view, zoom on the mitral valve. A mobile hyperechogenic mass (arrow) is attached on the atrial side of the mitral valve. B. Color Doppler imaging reveals severe mitral regurgitation with eccentric jet towards the interatrial septum. LA left atrium, LV left ventricle, RA right atrium, RV right ventricle.

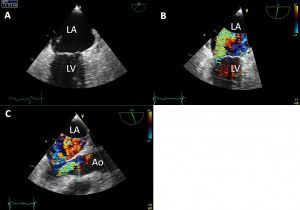

Figure 3. Transesophageal echocardiography – midesophageal 2 chamber view (A,B) and long axis view (C) A. 2.2 cm long, mobile, hyperechogenic mass attached on the atrial side of the mitral valve. The echocardiographic appearance is suggestive for vegetation. B. Severe mitral regurgitation is revealed by the color Doppler examination C. Color Doppler imaging shows moderate-severe aortic regurgitation. LA left atrium, LV left ventricle, Ao ascending aorta.

Due to the etiology of the endocarditis and the known association between Streptococcus gallolyticus endocarditis/bacteraemia and colonic lesions, colonoscopy was performed. Five colonic polypoid lesions were found, three pedunculated (1.5 cm, 1.5 cm and 5 mm respectively) and two sessile (5 mm) which were endoscopically resected by endoscopic mucosectomy, after submucosal injection of 1:10000 Adrenaline solution (Figure 4). The histopathological analysis revealed in one of the three pedunculated polyps, located in the sigmoid colon (1.5 cm in size) 40% of mucosal surface with high grade dysplasia and multiple areas of epithelial misplacement, with low grade dysplasia (Figure 5). All the lesions were endoscopically resected with safe resection margins. The polypectomy site was tattooed using SPOT for colonoscopic surveillance.

Figure 4. Colonoscopy: pedunculated polypoid lesion in the descending colon.

Figure 5. Histopathological examination of one of the resected pedunculated polyps – optic microscopy, haematoxilin-eosin staining (HE). A. Epithelial misplacement (low grade dysplasia in the encircled area) – 2 mm distance from the resection margin (HE 10X). B. High grade dysplasia (HE 40X).

Taking into account the presence of heart failure symptoms in a patient with two significant regurgitations and the large, mobile mitral valve vegetation, heart surgical intervention was considered. The patient underwent uneventful aortic and mitral valve replacement with mechanical prosthesis.

Discussion

Endocarditis due to Streptococcus bovis is frequently associated with colorectal disease, multiple valve involvement and embolic risk.1 Streptococcus bovis is the etiological agent in 6% of the infective endocarditis cases, varying from 2% in North America to 10% in Europe in a large database.2 Multiple valve involvement is more common in Streptococcus bovis endocarditis than in other forms of endocarditis, ranging from 36-60%.3,4 In the reported case the patient had both mitral and aortic valve involvement, a pattern described in approximately 18% of S. bovis endocarditis.4 Some authors suggest higher embolic risk for S. bovis endocarditis due to its ability to form large vegetations.5 Our patient had a long, mobile vegetation on the mitral valve, consistent with this description, however, no embolic event could be detected clinically. The embolic risk due to vegetation size, together with the presence of heart failure symptoms in a patient with two significant valvular regurgitations were the indication for mitral and aortic valve replacement in this case. The patient had no previous history of valve disease, a pattern consistent with S. bovis ability to infect normal valves. However, the presence of only mild symptoms of heart failure under these circumstances is a particularity of this case.
The association between Streptococcus bovis endocarditis and colonic lesions, both benign or malignant, has been well recognized.6-9 In patients with Streptococcus bovis endocarditis complete evaluation of the gastrointestinal tract, particularly the colon is warranted.10 It is estimated that between 18 and 62% of the patients with S. bovis endocarditis have underlying colorectal tumors11, sometimes with no signs or symptoms referable to gastrointestinal disease. Moreover, colonic neoplasia may appear years after a diagnosis of S. bovis endocarditis or bacteraemia, suggesting the need of colonoscopic surveillance in the patients with normal initial colonoscopy.
Three Streptococcus bovis biotypes I, II/1 and II/2 have been described. Most of the cases of S. bovis bactaeremia associated with colorectal cases were actually proven to be due to S. bovis biotype I. In an attempt to modernize molecular classification of S. bovis subspecies, these biotypes have been recently renamed.12 Based on molecular characteristics Streptococcus bovis biotype I has been renamed as Streptococcus gallolyticus subsp gallolyticus and biotype II/2 was renamed S. gallolyticus subsp pasteurianus while Streptococcus infantarius subsp infantarius and S. infantarius subsp coli are the former S. bovis II/1. However, proper distinction between the Streptococcus bovis strains belonging to Streptococcus gallolyticus and Streptococcus infantarius has not been uniformelly included in studies or cardiological literature and pratice, and it has been suggested that lack of awareness of the new bacteriological nomenclature may leed to involuntary underdiagnosis of serious underlying conditions, including colon carcinoma.13
Besides the association with colon cancer, different case series suggest also an association between S. gallolyticus and malignancy irrespective of site14 and different cases report S. gallolyticus bacteraemia/endocarditis in patients with upper gastrointestinal tract neoplasia, gastric lymphoma or endometrial cancer.11 It appears that there is also a link between Streptococcus gallolyticus endocarditis and liver disease, the prevalence of chronic liver disease in patients with this type of endocarditis being significantly higher than in patients with endocarditis of other ethiologies.15
The pathogenesis of the association between S. gallolyticus endocarditis/bactaeremia and colonic lesions is not yet understood, especially that Streptococcus gallolyticus can be found in the gastrointestinal tract in 5-16% of healthy population.11,16 The etiological versus non-etiological nature of the association is also not clearly defined. Several possible mechanisms have been described. While ulceration of a neoplastic lesion can provide a pathway for the bacteria to enter the bloodstream this hypothesis does not explain the case of association between Streptococcus gallolyticus and non ulcerated colonic adenoma or polyps. Some authors suggest a bacterial translocation without the need for mucosal disruption due to vascular changes in the context of several gastrointestinal diseases.16 The association between Streptococcus bovis bacteremia and liver disease suggests that an altered hepatic function may also play a role in the changes of colonic flora and bacterial translocation. On the other site, a direct carcinogenetic role of Streptococcus gallolyticus has been considered possible due to the potential of this bacteria to promote preneoplastic colonic lesions progression in a rat model.16,17
However, no matter of the mechanism of the association, the clinical importance of adequate screening for gastrointestinal malignancy in cases of Streptococcus gallolyticus endocarditis should be underlined, especially as lesions can be identified in early premalignant stages.
In the above reported case, proper acknowledgement of Streptococcus gallolyticus as a subspecies of S. bovis led to the evaluation of the lower digestive tract in a patient with otherwise no gastrointestinal signs or symptoms and to the early diagnosis and treatment of a colonic premalignant lesion. The histopathological assessement raised the question of differential diagnosis between invasive adenocarcinoma and the epithelial misplacement lesion. Epithelial misplacement is due to the traction of polyp mucosa by the torsion of peduncle,
especially in pedunculated polyps located in the left co­lon. In our patient it was certified by the presence of low grade dysplasia at the site of epithelial misplacement, and a positive Pearls staining surrounding that area. To our knowledge there are no current reports su­g­gesting epithelial misplacement as a possible cause of Stre­ptococcus gallolyticus endocarditis in patients at risk.

Funding
This work was partially supported by 42-119/2008 grant PARTENERIATE funded by UEFISCDI – Ministry of Education and Research, Romania.

Reference

1. Habib G, Hoen B, Tornos P, et al. Guidelines on the prevention, diagnosis and treatment of infective endocarditis (new version 2009). Eur H Jour 2009;30:2369-2413.
2. Murdoch DR, Corey R, Hoen B, et al. Clinical presentation, etiology and outcome of infective endocarditis in the 21st century. Arch Intern Med 2009;169:463-473.
3. Kupferwasser I, Darius H, Mueller AM, et al. Clinical and morphological characteristics in Streptococcus bovis endocarditis: a comparison with other causative microorganisms in 177 cases. Heart; 1998: 276-280.
4. Ballet M, Gevigney G, Gare JP, et al. Infective endocarditis due to Strep­tococcus bovis. A report of 53 cases. Eur H Jour 1995;16:1975-1980.
5. Pergola V, Di Salvo G, Habib G, et al. Comparison of clinical and echo­cardiographic characteristics of Streptococcus bovis endocarditis with that caused by other pathogens. Am J Cardiol 2001;88:871-875.
6. Hoppes WL, Lerner PI. Nonenterococcal group-D streptococcal endocarditis caused by Streptococcus bovis. Ann Intern Med 1974;81: 588-593.
7. Klein RS, Recco RA, Catalano MT, et al. Association of Streptococcus bovis with carcinoma of the colon. N Engl J Med 1977;297:800-802.
8. Klein RS, Catalano MT, Edberg SC, et al. Streptococcus bovis septicemia and carcinoma of the colon. Ann Intern Med 1979;91:560-562.
9. Murray HW, Roberts RB. Streptococcus bovis bacteremia and under­lying gastrointestinal disease. Arch Intern Med 1978;138:1097-1099.
10. Karchmer AW. Infective Endocarditis. In Braunwald’s Heart Disease. 8th Edition. Saunders Elsevier 2008;1713-1738.
11. Abdulamir AS, Hafidh RR, Abu Bakar F. The association of Streptococcus bovis/gallolyticus with colorectal tumors: The nature and the underlying mechanisms of its etiological role. J Exp Clin Cancer Res 2011;30:11.
12. Schlegel L, Grimont F, Ageron E, et al. Reappraisal of the taxonomy of the Streptococcus bovis/Streptococcus equinus complex and related species: description of Streptococcus gallolyticus subsp. gallolyticus subsp. nov., S. gallolyticus subsp. macedonicus subsp. nov. and S. gallo­ly­ticus subsp. pasteurianus subsp. nov. Int J Syst Evol Microbiol 2003;
53:631-45.
13. Van’t Wout JW, Bijlmer HA. Bacteremia due to Streptococcus gallolyticus, or the perils of revised nomenclature in bacteriology. Clin Infect Dis. 2005;40:1070-1071.
14. Gold JS, Batar S, Salem RR. Association of Streptococcus bovis bacteremia with colonic neoplasia and extracolonic malignancy. Arch Surg 2004;139:760-765.
15. Tripodi MF, Adinolfi LE, Ragone E, et al. Streptococcus bovis endocarditis and its association with chronic liver disease: an underestimated risk factor. Clin Infect Dis 2004;38:1394-1400.
16. Ferrari A, Botrugo I, Bombelli E, et al. Colonoscopy is mandatory after Streptococcus bovis endocarditis: a lesson still not learned. Case report. World J Surg Oncol 2008; 6:49.
17. Ellmerich S, Scholler M, Duranton B, et al. Promotion of intestinal car­cinogenesis by Streptococcus bovis. Carcinogenesis 2000;21:753-756.
